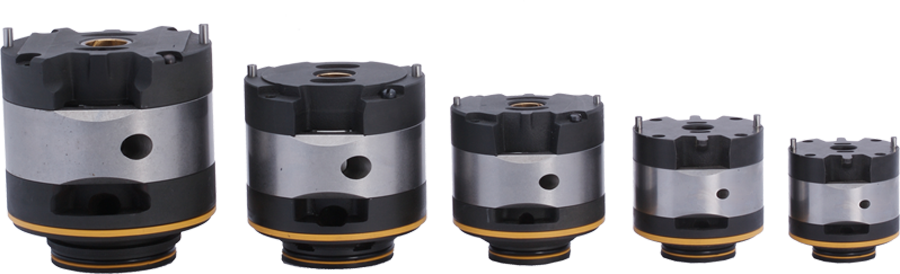

Cartrides
Model
20, 25, 30, 35, 45
Series
HV – Industrial, HVQ – Mobile
Ring size
2(20 HV/HVQ), 5 (20 HV/HVQ), 8(20 HV/HVQ), 9(20 HV/HVQ), 11(20 HV/HVQ), 12(20 HV/HVQ), 14(20 HV/HVQ), 12 (25 HV/HVQ), 14(25 HV/HVQ), 17(25 HV/HVQ), 19(25 HV/HVQ), 21(25 HV/HVQ), 24(30 HV/HVQ), 28(30 HV/HVQ), 21(35 HV/HVQ), 25(35 HV/HVQ), 30(35 HV/HVQ), 35(35 HV/HVQ), 38(35 HV/HVQ), 42(45 HV/HVQ), 47(45 HV/HVQ), 50(45 HV/HVQ), 57(45 HV/HVQ), 60(45 HV/HVQ)
Cartridge Position
P1 – For single pump or shaft end in double pump, P2 – For cover end in double pump
Shaft Rotation (Viewed from shaft end)
