USE:

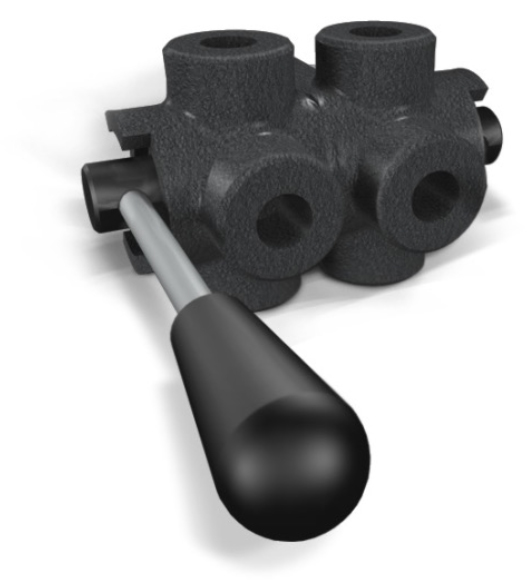

Valves formed by two coupled 3-way diverters: each of the two sections has the function of diverting the flow from a single supply to two outlets. The two sections are operated simultaneously using a single lever. They can be used to operate two actuators.
MOUNTING:
Connect P and P ‘to the two power supplies, ports A and B to the first actuator and ports A’ and B ‘to the second actuator. With lever in pos. 1 P feeds A and P ‘feeds A’, with lever in pos. 2 P feeds B and P ‘feeds B’. With the lever in the central position the mouths of each section are connected to each other (open center).
USE: Valves used to divert the inlet flow to two outlet ports. MOUNTING: Connect P to the power supply and ports A and P to the branches of the hydraulic circuit to which the flow is to be di...
USE: Valves used to divert the inlet flow to two outlet ports. MOUNTING: Connect P to the power supply and ports A and P to the branches of the hydraulic circuit to which the flow is to be...
