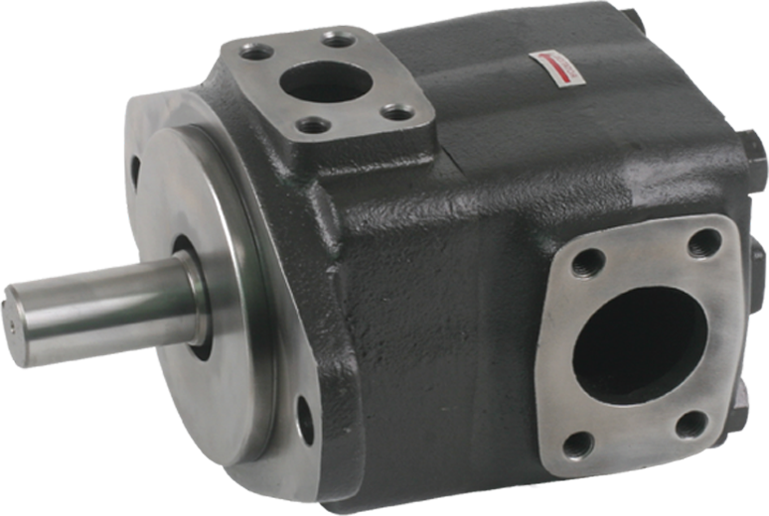

Model
20, 25, 35, 45
Series
HV – Industrial, HVQ – Mobile
Ring Size (USgpm)
2 (20HV/HVQ), 5 (20HV/HVQ), 8 (20HV/HVQ), 9 (20HV/HVQ), 11 (20HV/HVQ), 12 (20HV/HVQ), 14 (20HV/HVQ), 12 (25HV/HVQ), 14(25HV/HVQ), 17 (25HV/HVQ), 19 (25HV/HVQ), 21 (25HV/HVQ), 21 (35HV/HVQ), 25 (35HV/HVQ), 30 (35HV/HVQ), 35 (35HV/HVQ), 38 (35HV/HVQ), 42 (45HV/HVQ), 47 (45HV/HVQ), 50 (45HV/HVQ), 57 (45HV/HVQ), 60 (45HV/HVQ)
Port Connection
A – SAE 4-bolt with Inch threads, AM – SAE 4-bolt with Metric threads
Shaft
1 – Straight keyed, 11 – Splined (25/35/45 HV/HVQ), 86 – Heavy duty straight keyed (25/35/45 HV/HVQ), 151 – Splined (20HV/HVQ only)
Outlet Port position (Viewed from cover end)
A – Opposite Inlet, B – 90° CCW from inlet, C – Inline with inlet, D – 90° CW from inlet
Shaft Rotation (Viewed from shaft end)
