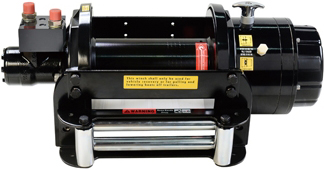

Part number: PN 686732 (Std. drum)  / PN 687548 (Std. drum – Clutch in left side)

Rated line pull: 6,800 kg / 15,000 lb (EN 14492-1 rating & SAE J706 rating)

Line speed (at 1st layer of rope) : 9 mpm at 60 l/min (30 fpm at 15.9 g/min)

Operation pressure: 150 bar / 2,175 psi

Max oil flow: 60 l/min (15.9 g/min)

Hydraulic motor: 156 cm3/rev (9.5 in3/rev)

Gear ratio: 2-stage planetary gear 19.4:1

Winch construction: Aluminum die cast housings with steel drum

Clutch (Freespooling): Rotating ring gear

Brake: Spring applied drag brake together with over-center valve supplied

Rotation of winch: Wire rope shall be under-wound orientation only

Drum barrel diameter: 127 mm (5″)

Drum flange diameter: 252 mm (9.9”)

Distance between flanges: 255 mm (10″)

Mounting bolt pattern:

303.5 x 114.3 mm (12” x 4.5”)

368.5 x 171.2 mm (14.5” x 6.7”)

Wire rope recommended:

14 mm x 27 m (9/16″ x 89′) 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 and EN 14492-1 ratings

Winch weight: 72 kg / 158.7 lb

Gross weight: 88 kg / 194 lb

Box dimension, (L x D x H) : 735 x 430 x 335 mm (29″ x 16.9″ x 13.2″)

Compliant with EN 14492-1 requirements for vehicle recovery winch:

* The working coefficient for the first rope layer on the drum shall be at least 2.

* The D/d ratio to the center of the rope shall be at least 10 for the drum.

* Drum freeboard shall be at least 1.5 x rope diameter
